Introduction to Pultruded Fiberglass
Pultruded fiberglass is a game-changing material in the construction industry. This innovative composite is produced through the pultrusion process, which combines continuous fiberglass strands with a resin matrix to create strong, lightweight, and corrosion-resistant profiles. These profiles are used in various structural applications, providing numerous advantages over traditional materials like steel and wood.
The Pultrusion Process: An Overview
Selecting the Raw Materials
The process begins with the selection of high-quality raw materials:
- Fiberglass Strands: Known for their high tensile strength and flexibility.
- Resin Matrix: Typically polyester, vinyl ester, or epoxy resins are chosen for their durability and resistance to environmental factors.
Impregnating the Fibers
Fiberglass strands are pulled through a resin bath, ensuring they are thoroughly impregnated with the resin. Additives like pigments, catalysts, and fillers may be included to enhance the final product's properties.
Forming and Curing
After impregnation, the resin-soaked fibers are aligned and passed through a heated die. This step shapes the material and cures the resin, transforming it from liquid to solid.
Continuous Pulling and Cutting
The cured composite is continuously pulled from the die and cut to specific lengths using automated cutting tools. Additional finishing operations, such as coating or machining, may be applied to meet specific requirements.

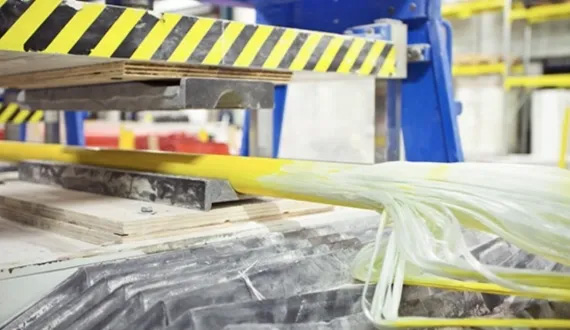

Pultrusion Process
Advantages of Pultruded Fiberglass in Construction
High Strength-to-Weight Ratio
Pultruded fiberglass offers an exceptional strength-to-weight ratio, making it an ideal choice for load-bearing applications without adding unnecessary weight. This attribute is particularly beneficial in construction, where structural integrity and ease of handling are crucial.
Corrosion and Weather Resistance
Fiberglass composites are inherently resistant to corrosion, moisture, and UV radiation. These properties ensure long-term durability and minimal maintenance, even in harsh environmental conditions.
Electrical and Thermal Insulation
Pultruded fiberglass provides excellent electrical insulation and low thermal conductivity. This makes it suitable for applications where electrical and thermal properties are critical, such as in utility poles and HVAC systems.
Design Versatility
The pultrusion process allows for the creation of complex shapes and custom profiles. This design flexibility enables architects and engineers to develop innovative solutions tailored to specific construction needs.
Key Applications of Pultruded Fiberglass in Construction
Structural Components
Pultruded fiberglass is used to manufacture beams, columns, and other structural elements. These components offer superior strength and durability compared to traditional materials, enhancing the overall integrity of buildings and infrastructure.
Bridge Decking
Fiberglass bridge decking provides a lightweight, corrosion-resistant alternative to traditional materials. It reduces maintenance costs and extends the lifespan of bridges, making it a cost-effective solution for infrastructure projects.
Utility Poles and Crossarms
Due to its electrical insulation properties and resistance to environmental factors, pultruded fiberglass is ideal for utility poles and crossarms. These components ensure reliable performance and longevity in utility networks.
Grating and Flooring
Pultruded fiberglass grating and flooring are widely used in industrial and commercial settings. They offer a non-slip surface, high load-bearing capacity, and resistance to chemicals and fire, enhancing safety and functionality.
Cooling Towers
Cooling towers benefit significantly from the use of pultruded fiberglass due to its corrosion resistance and lightweight properties. The material withstands harsh chemical environments and reduces the overall weight of the structure, leading to easier installation and lower maintenance costs.
Handrails
Pultruded fiberglass handrails provide strength, durability, and corrosion resistance, making them ideal for both indoor and outdoor applications. They offer a safe, long-lasting solution for stairways, walkways, and platforms in various settings, including industrial and commercial environments.
The Future of Pultruded Fiberglass in Construction
Sustainable Materials
The construction industry is increasingly adopting sustainable practices. Pultruded fiberglass aligns with this trend by offering a longer lifespan and lower maintenance compared to traditional materials. Future advancements may include the development of bio-based resins and recyclable fibers to further reduce the environmental impact.
Advanced Manufacturing Technologies
Advancements in automation and precision manufacturing are set to revolutionize the pultrusion process. These technologies will enhance product quality, increase production efficiency, and reduce costs, making pultruded fiberglass even more competitive.
Innovative Applications
Ongoing research and development are expanding the range of applications for pultruded fiberglass. Future innovations may include smart composites with embedded sensors for structural health monitoring, further enhancing the safety and performance of construction materials.
Conclusion
Pultruded fiberglass is transforming the construction industry with its exceptional strength, durability, and versatility. As technology advances and sustainable practices become more prevalent, the role of pultruded fiberglass in building and infrastructure projects will continue to grow. Embracing this innovative material will unlock new possibilities and drive the future of construction.
